KL36S16SX - 電動自行車電池
  • 描述
  • 特點
  • 包装
型號
  • YLKL36S16SX.083
電池品牌
  • YLE
電池芯規則
  • INR18650A220
化學
Li-ion

Li-ion

For more deatils, please visit Cell Information.

電壓
  • 36 V
容量
  • 13.5 Ah
  • 486 Wh
配置
  • 10S6P
內阻
  • ≤75 mΩ
充電電壓限制
  • 42.5 V
連續放電電流
  • 10 A
尺寸
  • 89.00 x 87.00 x 381.00 mm
重量
  • 3.77 kg
操作溫度充電
  • 0~45 ℃
操作溫度放電
  • -20~60 ℃
貯藏溫度
  • -20~40 ℃
循環壽命
  • 500 Times
PCB的安全功能
  • Cell balancing
  • Over-current protection
  • Over-discharge
  • Over-charge
  • Temperature protection
  • Secondary protection

所有品牌,商標和註冊商標均為其各自所有者的財產。

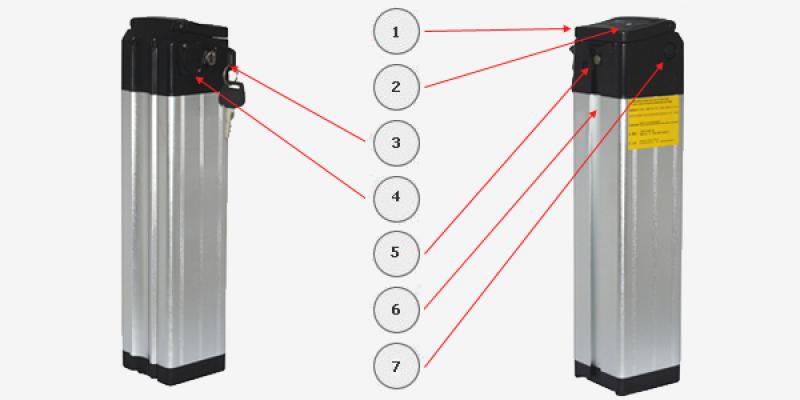

1. 插圖

1 Movable handlebar
2 4 Level LED power indicator
3 Key lock
4 Charging input jack
5 Lock bolt
6 Guide rail connecting path
7 15A Fuse
2. 特點
安全設備
  • - 防水和堅定的ABS塑料外殼。
  • - 內置的保護電路板。
  • - 防止短路,過流,過熱,過充電,過放電。
  • - 包的內部是穩定的支撐。
  • - 避免機械事故造成的震動。

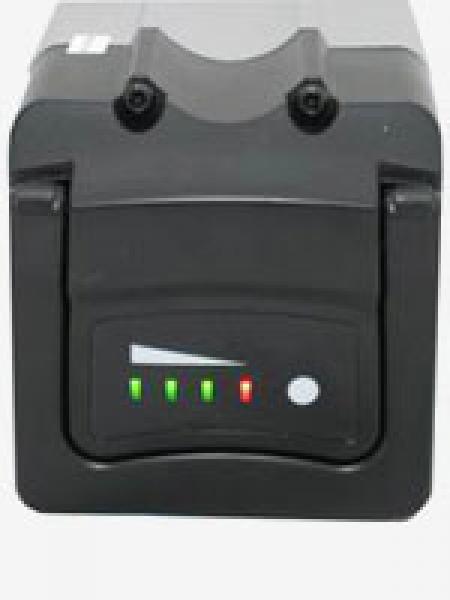

The Four-level LED indicates current power status.

The Four-level LED indicates current power status.

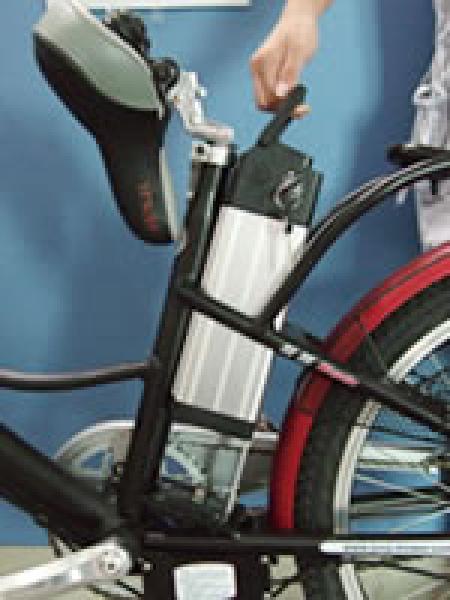

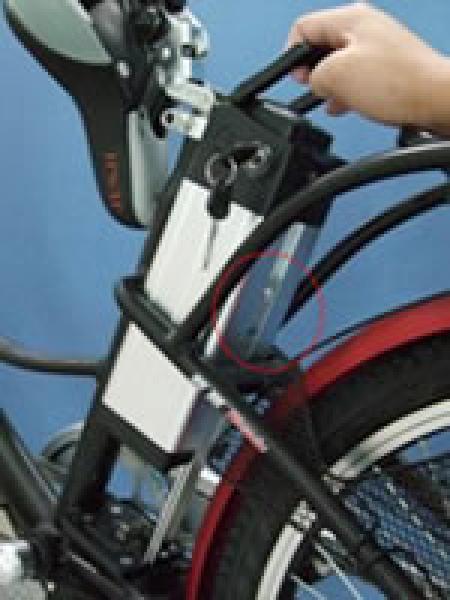

Battery can be installed and removed easily by using the easy-carrying handlebar.

Battery can be installed and removed easily by using the easy-carrying handlebar.

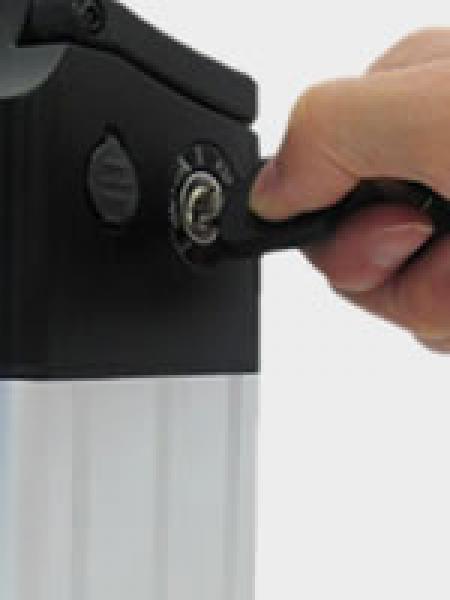

Power button is controlled by the safety key lock.

Power button is controlled by the safety key lock.


The 15A fuse, serves as a second protection device, it can prevent the battery pack from excessive discharge.

The 15A fuse, serves as a second protection device, it can prevent the battery pack from excessive discharge.

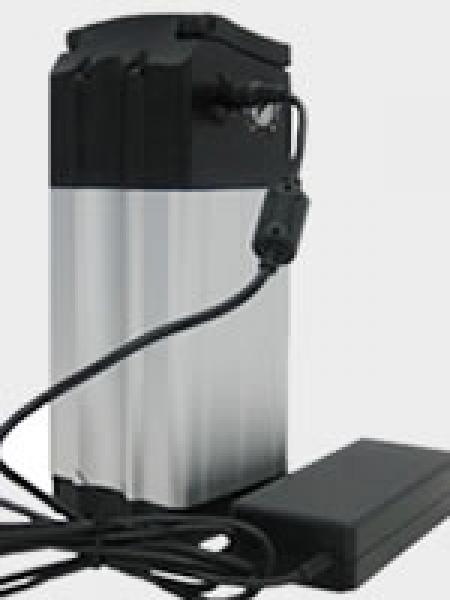

Battery can be recharged either by fastening on the bike or by itself with the provided AC adapter.

Battery can be recharged either by fastening on the bike or by itself with the provided AC adapter.


The track allows users to install different sizes / shapes of batteries conveniently.

The track allows users to install different sizes / shapes of batteries conveniently.

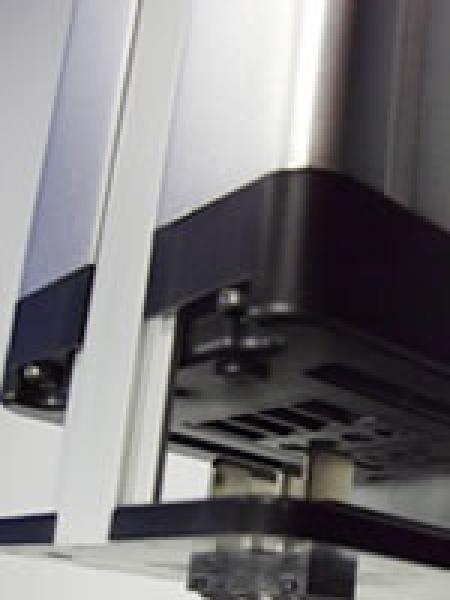

A well designed battery base helps to secure the battery pack in a proper position steadily.

A well designed battery base helps to secure the battery pack in a proper position steadily.

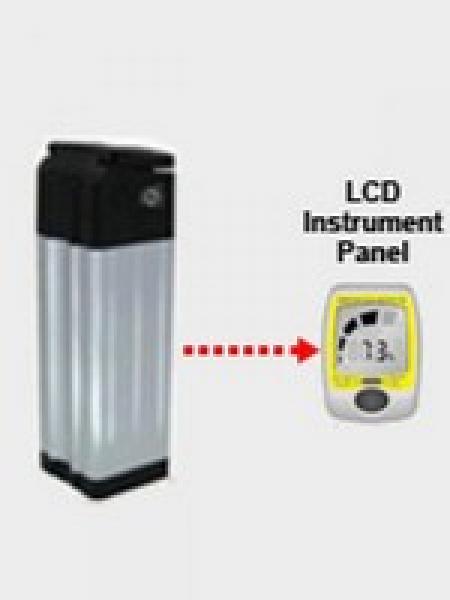

With built-in fuel gauge in the battery, battery performance and more information could be shown on the connected LCD instrument panel.

With built-in fuel gauge in the battery, battery performance and more information could be shown on the connected LCD instrument panel.

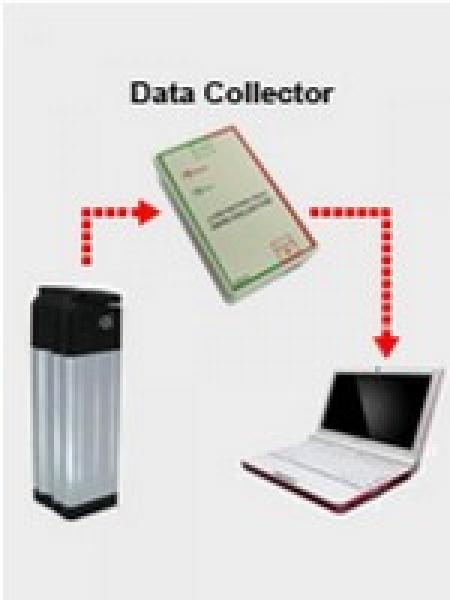

Battery information can be viewed on computer through the connection of data collector.

Battery information can be viewed on computer through the connection of data collector.

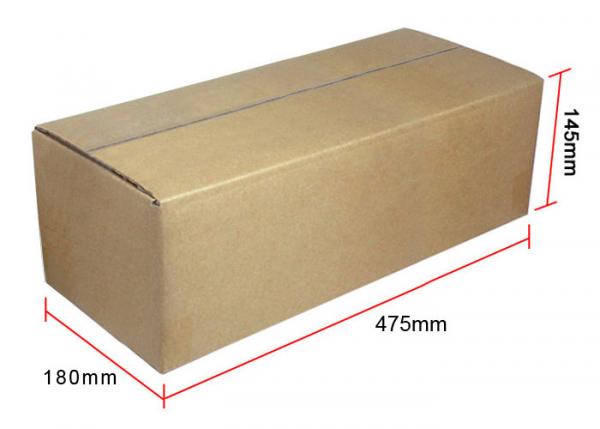

標準內包裝盒
對於單只電池。
B82
重量:455g

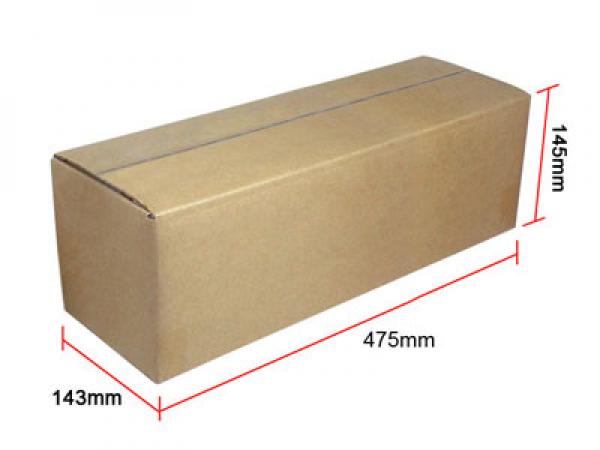

組合套裝內包裝盒
包括電池,充電器及配件的包裹。
B52
重量:600g
