KL36H15S - 電動自行車電池
KL36HS15S - 36V Electric Bicycle Battery
  • 描述
  • 特點
  • 附件
  • 包装
型號
  • YLKL36H15S.082
電池品牌
  • Panasonic
電池芯規則
  • CGR18650CG
化學
Li-ion

Li-ion

For more deatils, please visit Cell Information.
電壓
  • 36 V
容量
  • 11.25 Ah
率
  • 405 Wh
配置
  • 10S5P
內阻
  • ≤75 mΩ
充電電壓限制
  • 42.5 V
連續放電電流
  • 15 A
尺寸
  • 89.00 x 87.00 x 347.00 mm
重量
  • 3.25 kg
操作溫度充電
  • 0～45 ℃
操作溫度放電
  • -20～60 ℃
貯藏溫度
  • -20～40 ℃
循環壽命
  • 500 Times
PCB的安全功能
  • Cell balancing
  • Over-current protection
  • Over-discharge
  • Over-charge
  • Temperature protection
  • Secondary protection

所有品牌，商標和註冊商標均為其各自所有者的財產。

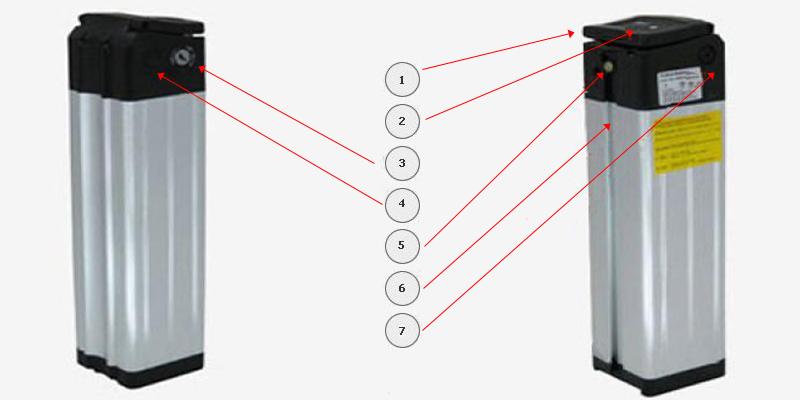

1. 插圖

1 Movable handlebar
2 4-Level LED indicator
3 Key lock
4 Charging input jack
5 Lock bolt
6 Guide rail connecting path
7 15A Fuse
2. 特點
安全設備
  • - 防水和堅定的ABS塑料外殼。
  • - 內置的保護電路板。
  • - 防止短路，過流，過熱，過充電，過放電。
  • - 包的內部是穩定的支撐。
  • - 避免機械事故造成的震動。

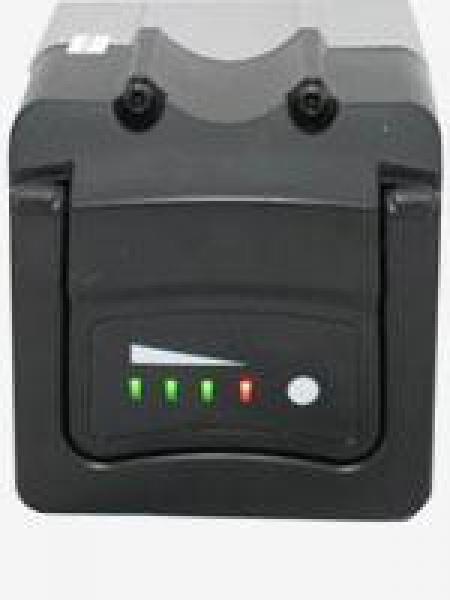

The Four-level LED indicates current power status.

The Four-level LED indicates current power status.

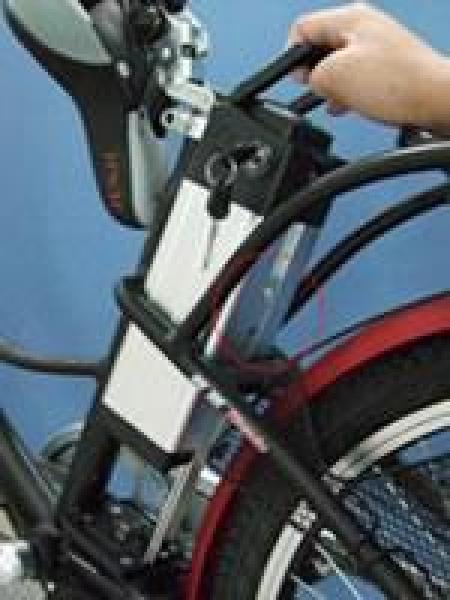

Battery can be installed and removed easily by using the easy-carrying handlebar.

Battery can be installed and removed easily by using the easy-carrying handlebar.

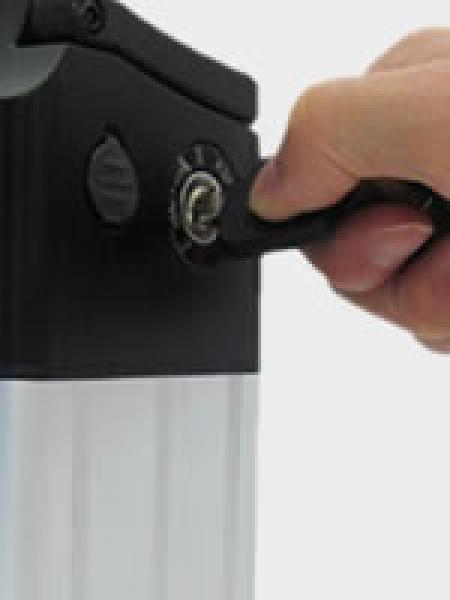

Power button is controlled by the safety key lock.

Power button is controlled by the safety key lock.


The 15A fuse, serves as a second protection device, it can prevent the battery pack from excessive discharge.

The 15A fuse, serves as a second protection device, it can prevent the battery pack from excessive discharge.

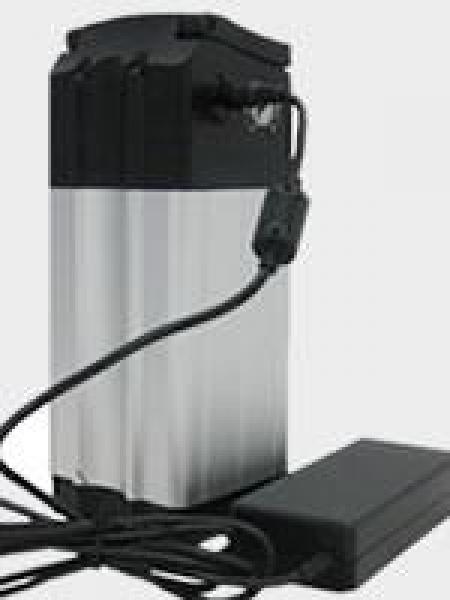

Battery can be recharged either by fastening on the bike or by itself with the provided AC adapter.

Battery can be recharged either by fastening on the bike or by itself with the provided AC adapter.

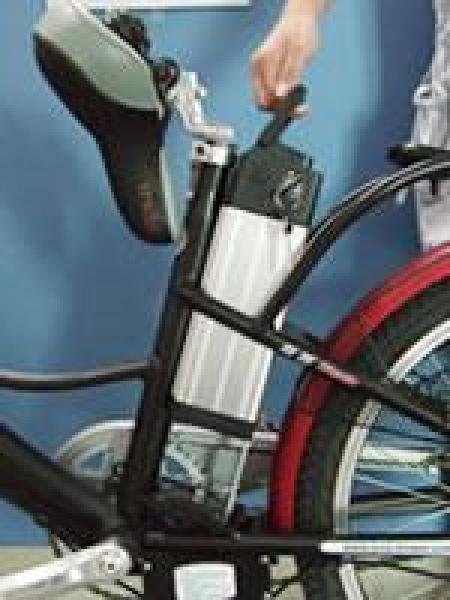

The track allows users to install different sizes / shapes of batteries conveniently.

The track allows users to install different sizes / shapes of batteries conveniently.

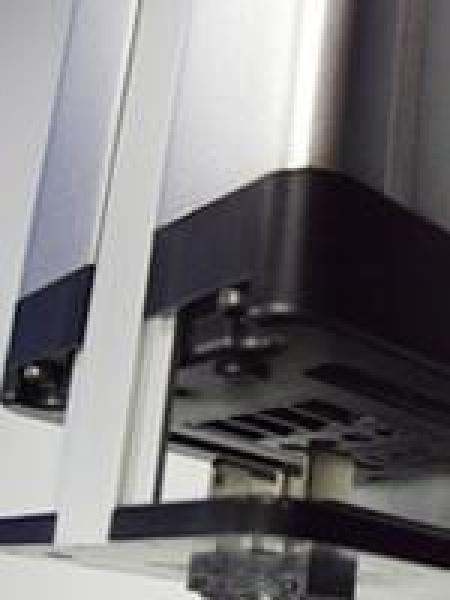

A well designed battery base helps to secure the battery pack in a proper position steadily.

A well designed battery base helps to secure the battery pack in a proper position steadily.


Power Cord
型號:LA
Australian Type Adapter Power Cord
  • Cord Length: 1000 mm
型號:LE
European Type Adapter Power Cord
  • Cord Length: 1000 mm

型號:LK
British Type Adapter Power Cord
  • Cord Length: 1000 mm
型號:LU
American Type Adapter Power Cord
  • Cord Length: 1000 mm

Battery Base
型號:KF.06
  • Size: 88.40 x 84.20 x 38.00 mm

Aluminum Rail
型號:KF.319A
  • Size: 319.00 x 29.00 x 3.90 mm

KL Battery Charger

標準內包裝盒
對於單只電池。
B52
重量:600g


組合套裝內包裝盒
包括電池，充電器及配件的包裹。
B82
重量:455g
