IFR22430D105
 |
| Product Information |
| Model | IFR22430D105 | |
| Chemistry | LiFe | |
| Nominal Voltage | 3.2 V | |
| Typical Capacity | 1050 mAh | |
| Intemal Impedance | ≤30 mΩ | |

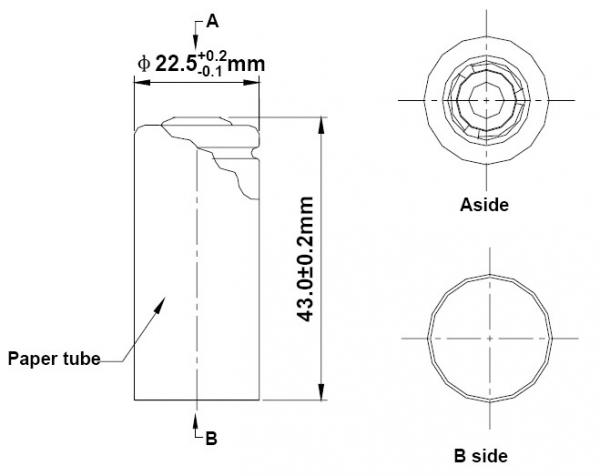

| Dimensions | Ø22.7mm×43.2mm | |
| Weight | ≤40 g | |
| Charge | Method | Constant Current & Voltage |
| Voltage | 3.65 V | |
| Standerd Current | 210mA (0.2C) | |
| Max. Current | 1050mA (1C) | |
| Dischange | Cut-off Voltage | 2.00 V |
| Standard Current | 210mA (0.2C) | |
| Max. Continuous Current | 10500mA (10C) | |
| Max. Impulse Current | 21000mA (20C) | |
| Operating Ambient Temperature | Charge | 0 ℃ to 45 °C |
| Discharge | -20 ℃ to 60 °C | |

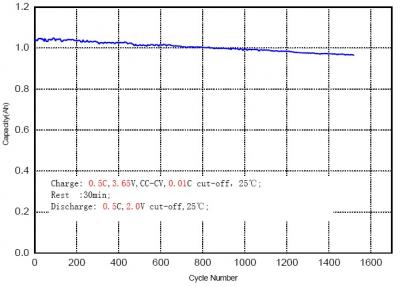

| Cycle Life | 1800 Times | |

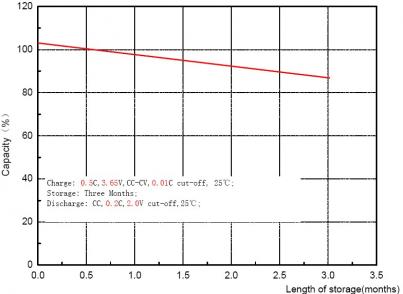

| Self-discharge Rate | ≤3% (Monthly) | |
