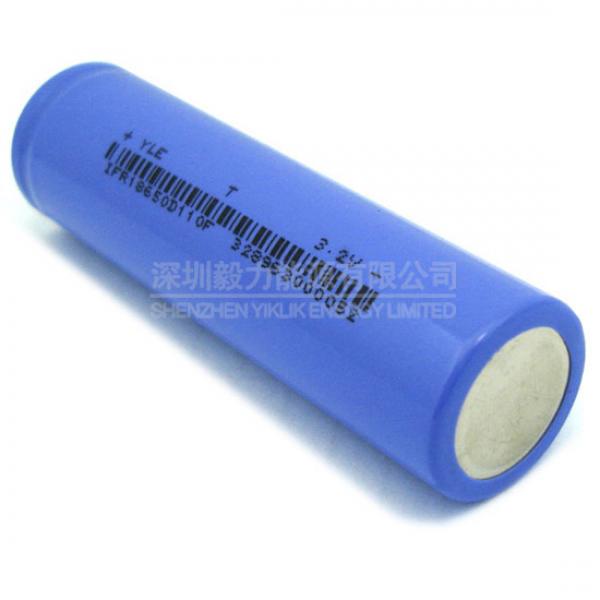

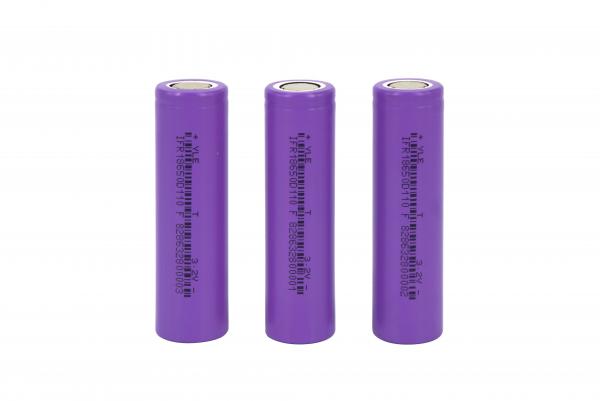

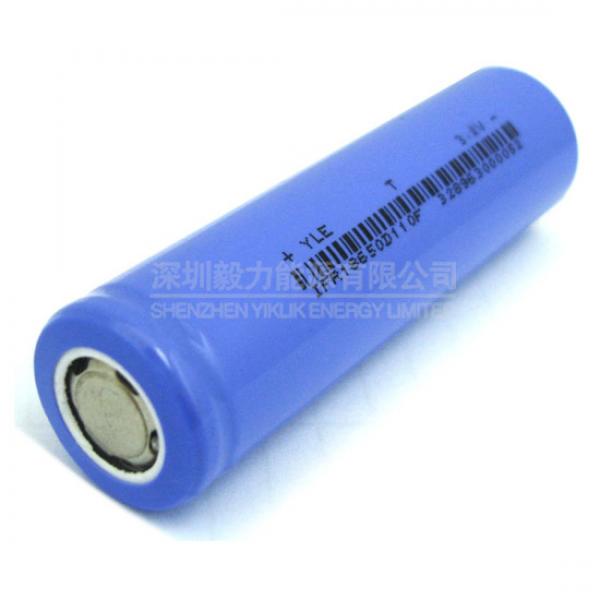

IFR18650D110F T
|
||
| Product Information |
| Model | IFR18650D110F T | |
| Chemistry | LiFe | |
| Nominal Voltage | 3.20 V | |
| Typical Capacity | 1100 mAh | |
| Intemal Impedance | ≤25 mΩ | |
| Dimensions | Ø18.30mm×65.20mm | |
| Weight | ≤45 g | |
| Charge | Method | Constant Current & Voltage |
| Voltage | 3.65 V | |
| Standerd Current | 220mA (0.2C) | |
| Max. Current | 1100mA (1C) | |
| Dischange | Cut-off Voltage | 2.00 V |
| Standard Current | 220mA (0.2C) | |
| Max. Continuous Current | 16500mA (15C) | |
| Max. Impulse Current | 40000mA (36C) | |
| Operating Ambient Temperature | Charge | 0 ℃ to 45 °C |
| Discharge | -20 ℃ to 60 °C | |
| Cycle Life | 1800 Times | |
| Self-discharge Rate | ≤3% (Monthly) | |
