ICR18650A240
|
||
| Product Information |
| Model | ICR18650A240 | |
| Chemistry | LiCo | |
| Nominal Voltage | 3.7 V | |
| Typical Capacity | 2400 mAh | |
| Intemal Impedance | ≤80 mΩ | |

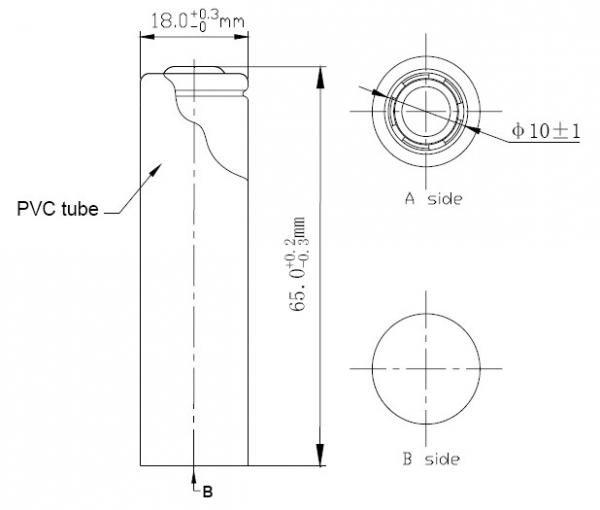

| Dimensions | Ø18.30mm×65.20mm | |
| Weight | ≤48 g | |

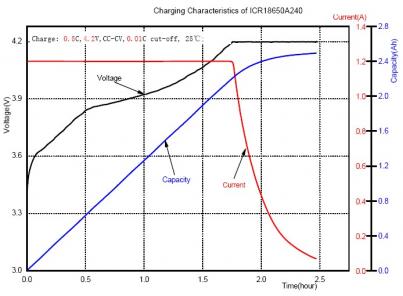

| Charge | Method | Constant Current & Voltage |
| Voltage | 4.20 V | |
| Standerd Current | 480mA (0.2C) | |
| Max. Current | 1680mA (0.7C) | |
| Dischange | Cut-off Voltage | 3.00 V |
| Standard Current | 480mA (0.2C) | |
| Max. Continuous Current | 2400mA (1C) | |
| Max. Impulse Current | 7200mA (3C) | |
| Operating Ambient Temperature | Charge | 0 ℃ to 45 °C |
| Discharge | -20 ℃ to 60 °C | |

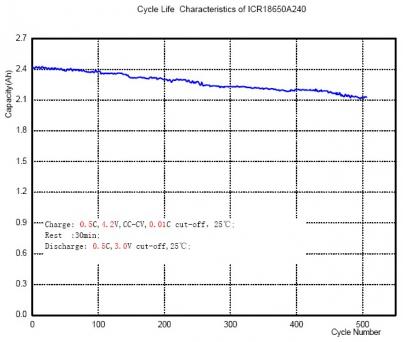

| Cycle Life | 700 Times | |
| Self-discharge Rate | ≤3% (Monthly) | |
